Accessing the machines, intro

Alexandre Strube // Sabrina Benassou

October 17, 2023

Communication:

Links for the complimentary parts of this course:

Goals for this course:

  • Make sure you know how to access and use our machines 👩‍💻
  • Put your data in way that supercomputer can use it fast 💨
  • Distribute your ML workload 💪
  • Important: This is NOT a basic AI course 🙇‍♂️

Team:

Alexandre Strube
Sabrina Benassou

Note

Please open this document on your own browser! We will need it for the exercises. https://go.fzj.de/inm-ml

Mobile friendly, but you need it on your computer, really

Jülich Supercomputers

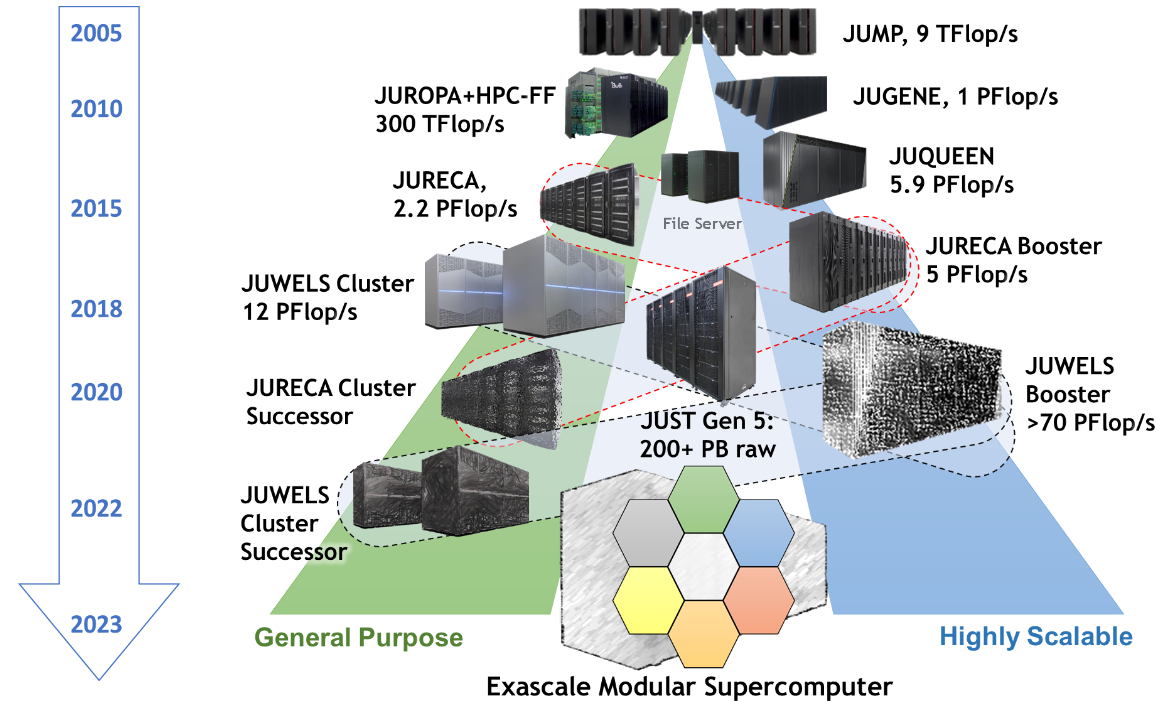

JSC Supercomputer Stragegy

What is a supercomputer?

  • Compute cluster: Many computers bound together locally
  • Supercomputer: A damn lot of computers bound together locally😒
    • with a fancy network 🤯
  • Important terms:
    • Login node: It’s where you connect and work
    • Compute work: it’s where magic happens 🪄🧙
    • No, really, it’s just where we compute stuff

JUWELS Booster Compute Nodes

  • 936 Compute Nodes
  • 2x AMD EPYC Rome 7402 CPU 2.7 GHz (48 cores x 2 threads = 96 virtual cores/node)
  • 512 GiB memory
  • Network Mellanox HDR infiniband (FAST💨 and EXPENSIVE💸)
  • 4x NVIDIA A100 with 40gb 😻
  • TL;DR: 89856 cores, 3744 GPUs, 468 TB RAM 💪
  • Way deeper technical info at Juwels Booster Overview

How do I use a Supercomputer?

  • Batch: For heavy compute, ML training
  • Interactively: Jupyter

You don’t use the whole supercomputer

You submit jobs to a queue asking for resources

You don’t use the whole supercomputer

And get results back

You don’t use the whole supercomputer

You are just submitting jobs via the login node

You don’t use the whole supercomputer

You are just submitting jobs via the login node

You don’t use the whole supercomputer

You are just submitting jobs via the login node

You don’t use the whole supercomputer

  • Your job(s) enter the queue, and wait for its turn
  • When there are enough resources for that job, it runs

You don’t use the whole supercomputer

And get results back

Supercomputer Usage Model

  • Using the the supercomputer means submitting a job to a batch system.
  • No node-sharing. The smallest allocation for jobs is one compute node (4 GPUs).
  • Maximum runtime of a job: 24h.

Recap:

  • Login nodes are for submitting jobs, move files, compile, etc
  • NOT FOR TRAINING NEURAL NETS

Recap:

  • User submit jobs
  • Job enters the queue
  • When it can, it runs
  • Sends results back to user

Connecting to JUWELS BOOSTER

Getting compute time

  • Go to https://judoor.fz-juelich.de/projects/join/training2336
  • Join the course project training2336 (It might take 30+ mins, do it early!)
  • Sign the Usage Agreements (Video)
  • Compute time allocation is based on compute projects. For every compute job, a compute project pays.
  • Time is measured in core-hours. One hour of Juwels BOOSTER is 48 core-hours.
  • Example: Job runs for 8 hours on 64 nodes of Juwels BOOSTER: 8 * 64 * 48 = 24576 core-h!

Connecting to JUWELS BOOSTER

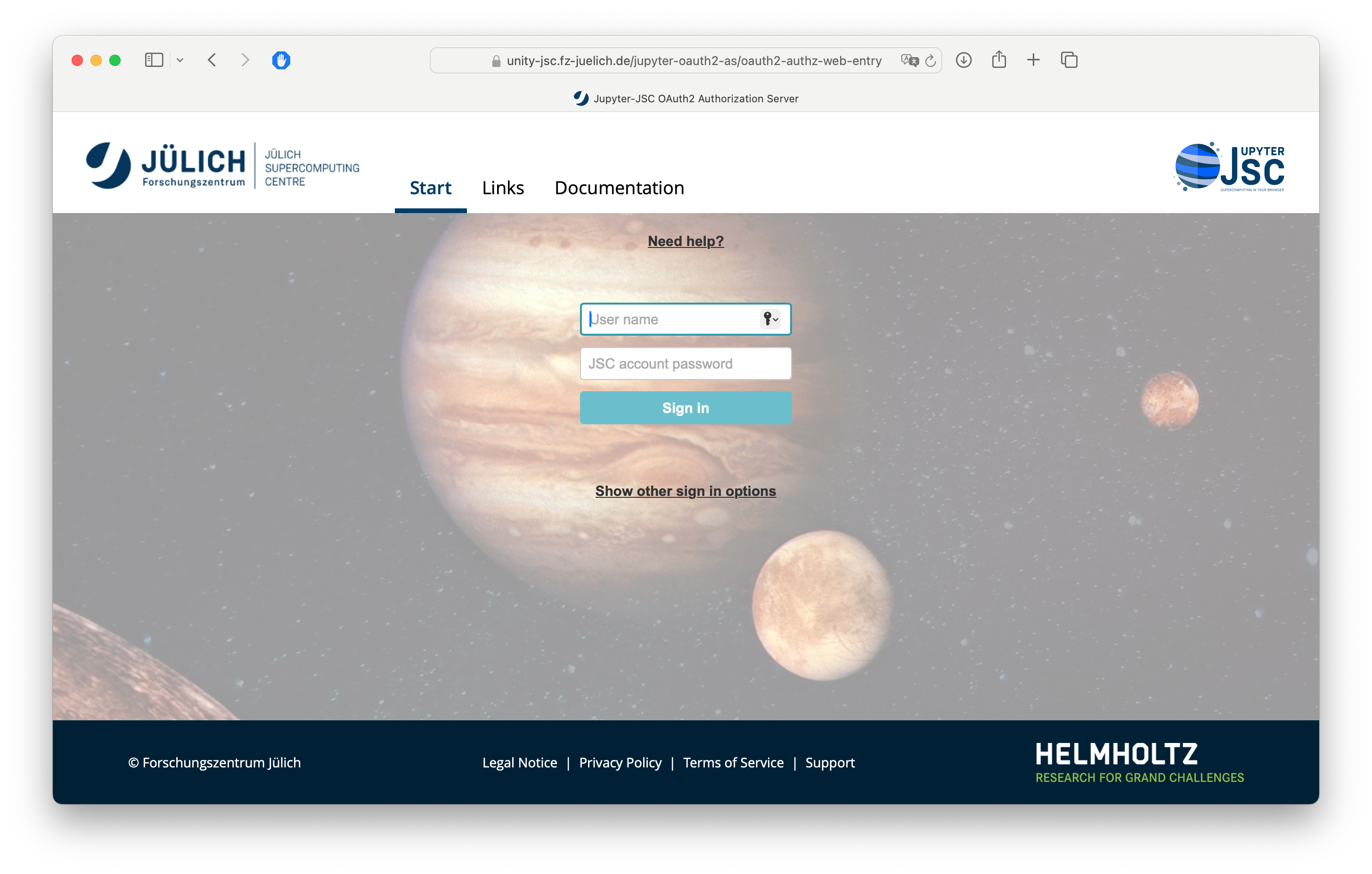

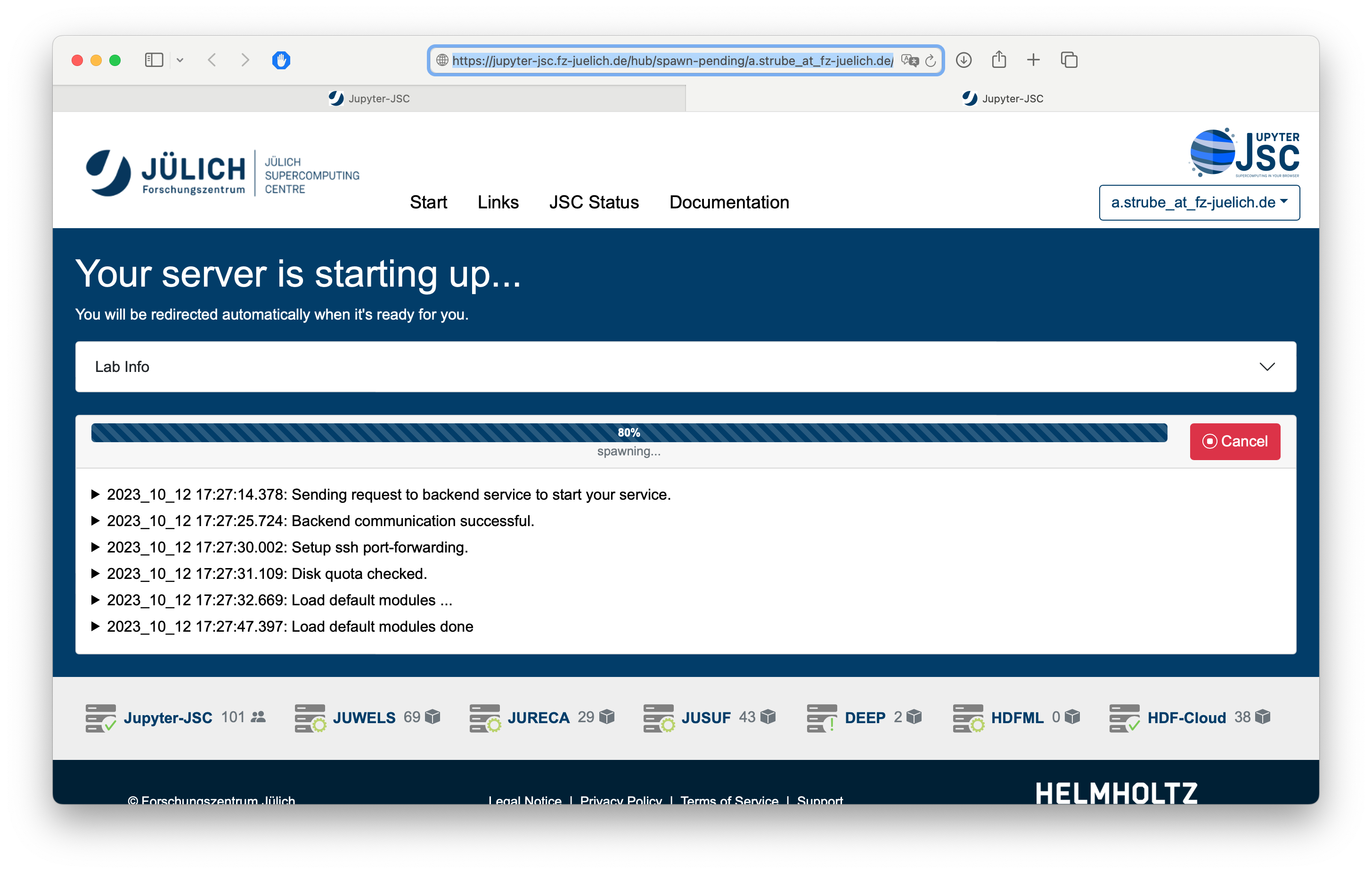

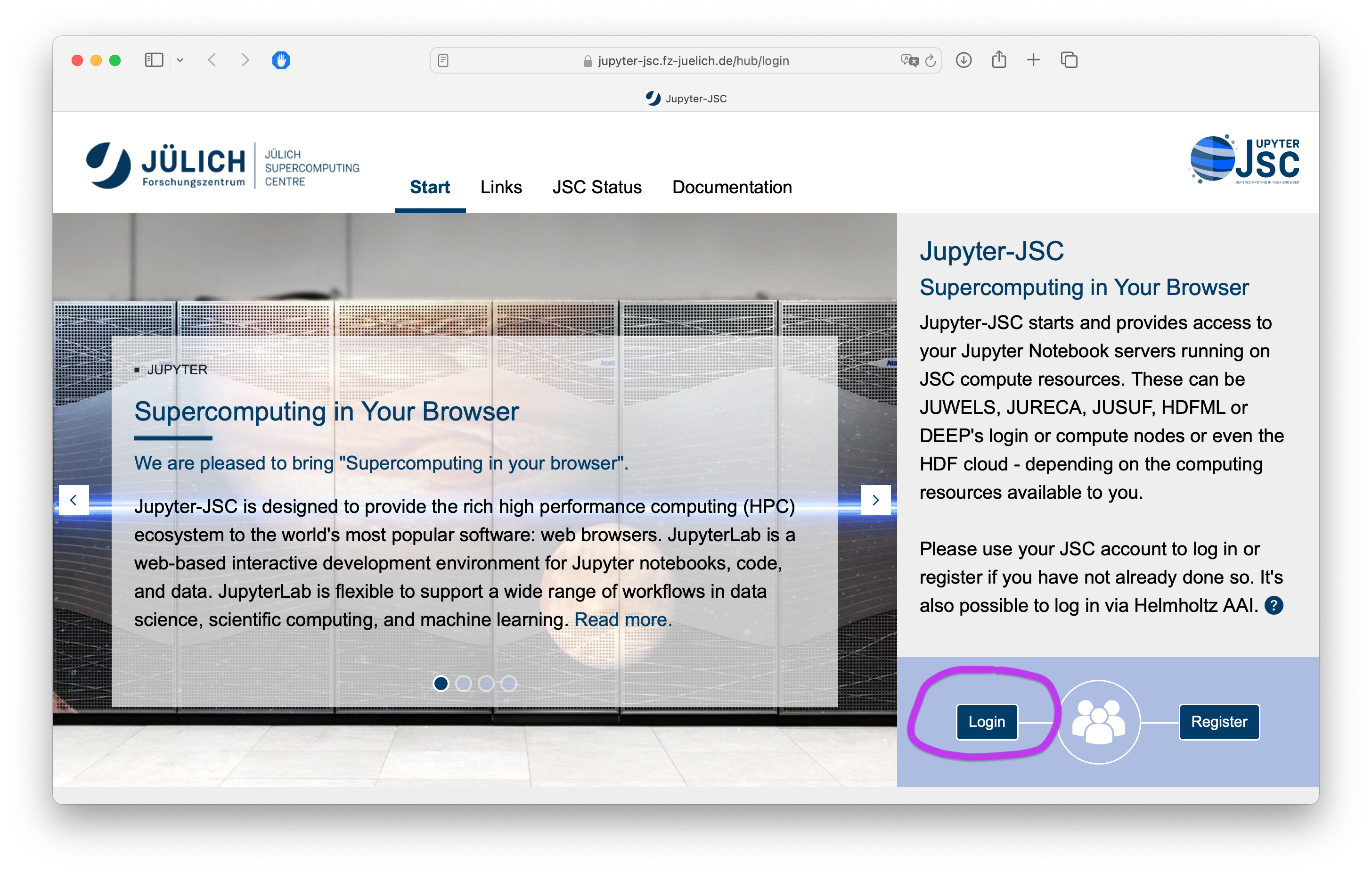

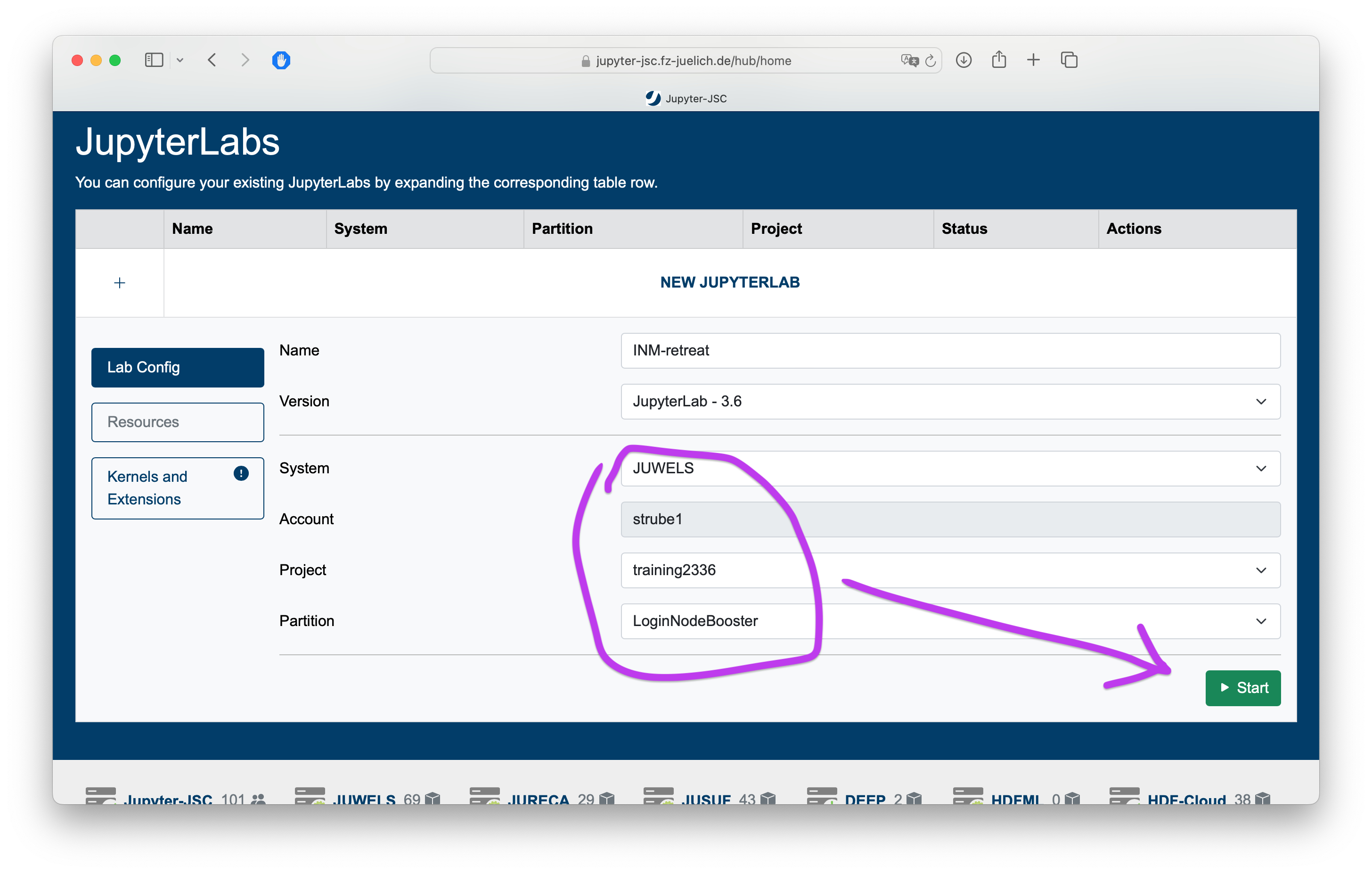

Jupyter-JSC

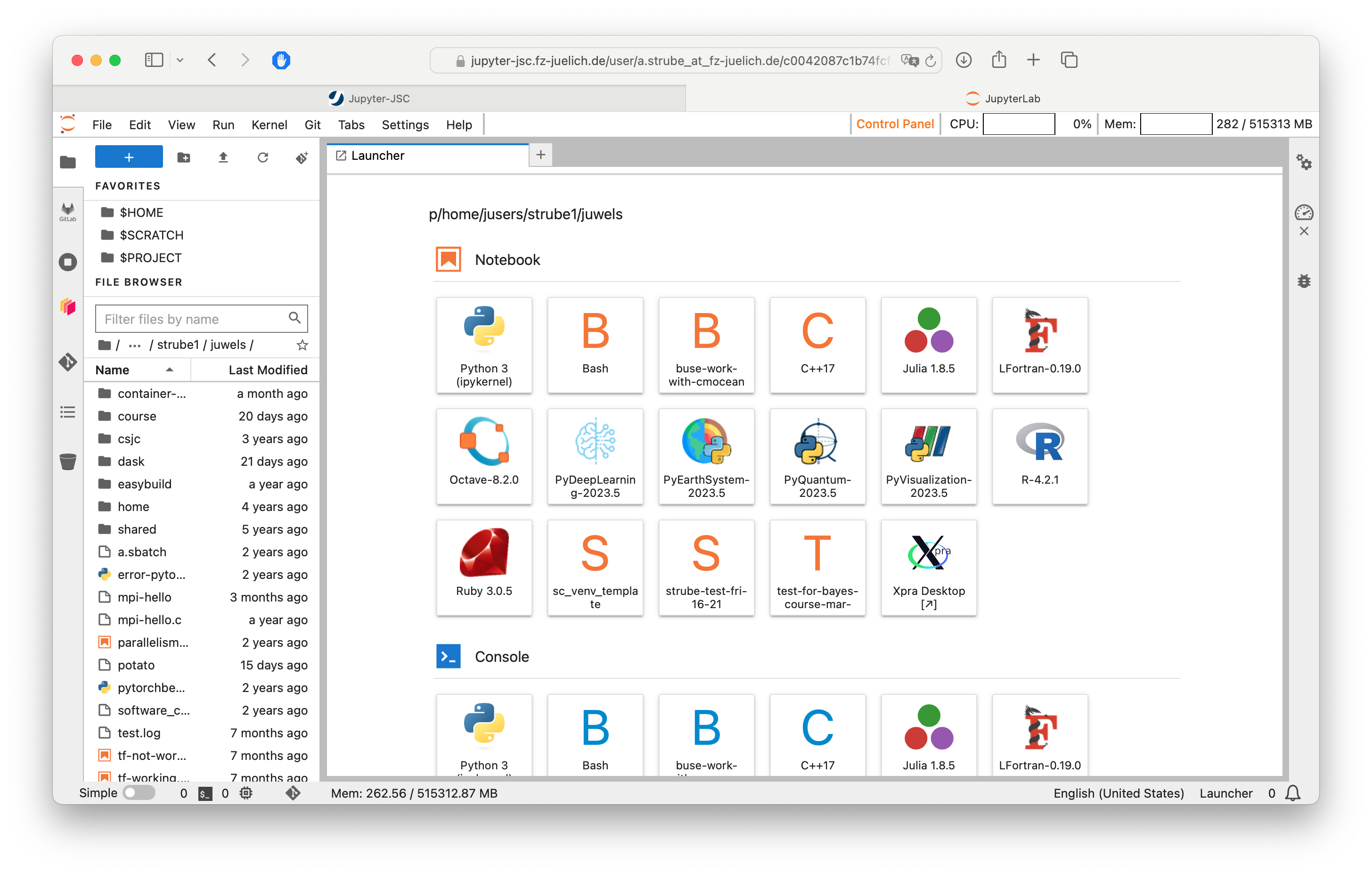

Jupyter

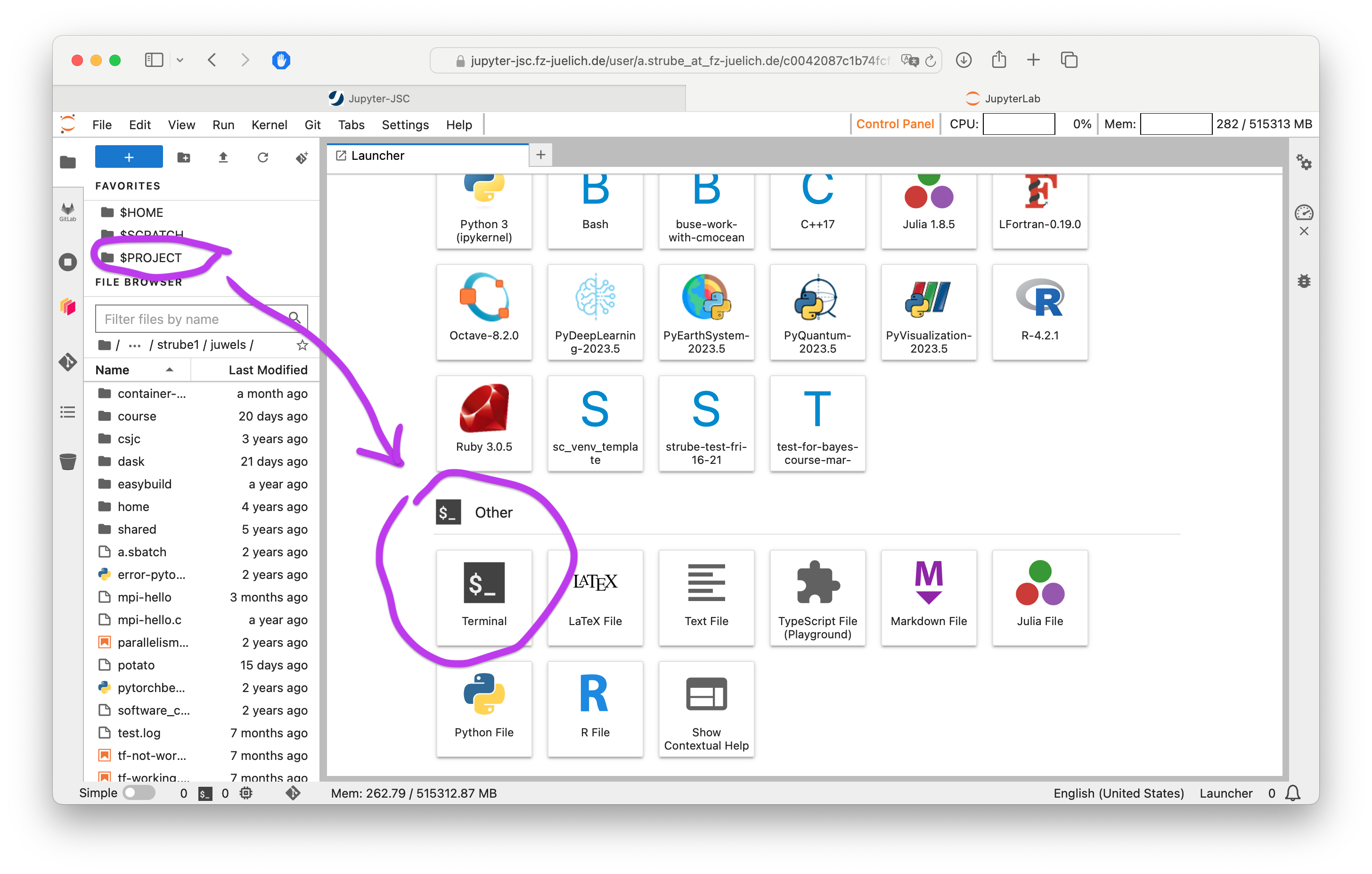

  • Double-click $PROJECT
  • Double-click Terminal

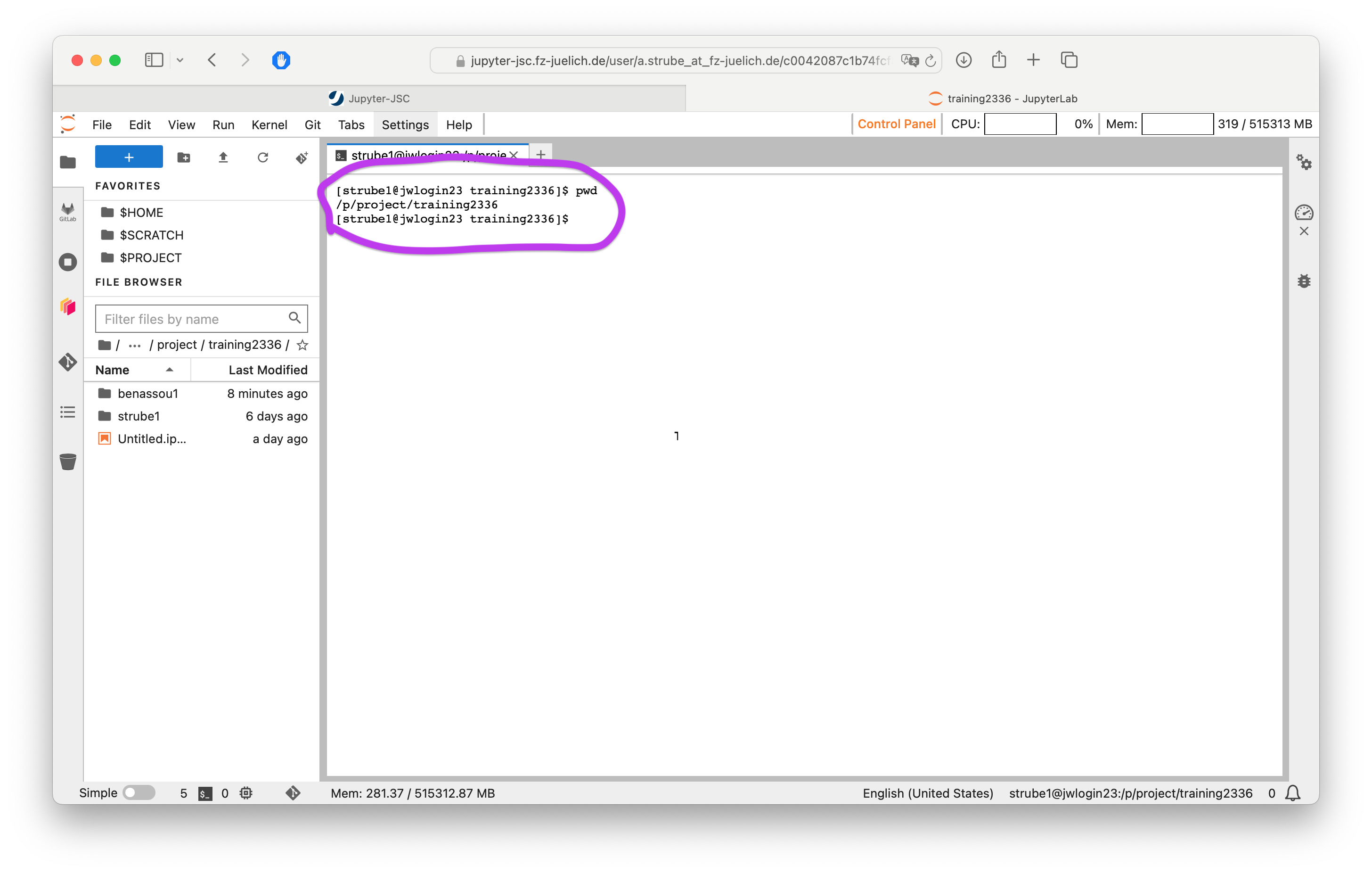

Jupyter

  • Type pwd
  • It should be on the course project folder: /p/project/training2336

Terminal: Exercise

# Create a shortcut for the project on the home folder
ln -s $PROJECT_training2336 ~/course

# Create a folder for myself
mkdir $HOME/course/$USER

# Enter course folder and
cd $HOME/course/$USER

# Where am I?
pwd

# We well need those later
mkdir $HOME/course/$USER/.cache
mkdir $HOME/course/$USER/.config
mkdir $HOME/course/$USER/.fastai

ln -s $HOME/course/$USER/.cache $HOME/
ln -s $HOME/course/$USER/.config $HOME/
ln -s $HOME/course/$USER/.fastai $HOME/

Working with the supercomputer’s software

Software

Tool for finding software: module spider

strube1$ module spider PyTorch
------------------------------------------------------------------------------------
  PyTorch:
------------------------------------------------------------------------------------
    Description:
      Tensors and Dynamic neural networks in Python with strong GPU acceleration.
      PyTorch is a deep learning framework that puts Python first.

     Versions:
        PyTorch/1.7.0-Python-3.8.5
        PyTorch/1.8.1-Python-3.8.5
        PyTorch/1.11-CUDA-11.5
        PyTorch/1.12.0-CUDA-11.7
     Other possible modules matches:
        PyTorch-Geometric  PyTorch-Lightning
...

What do we have?

module avail (Inside hierarchy)

Module hierarchy

  • Stage (full collection of software of a given year)

  • Compiler

  • MPI

  • Module

  • Eg: module load Stages/2023 GCC OpenMPI PyTorch

What do I need to load such software?

module spider Software/version

Example: PyTorch

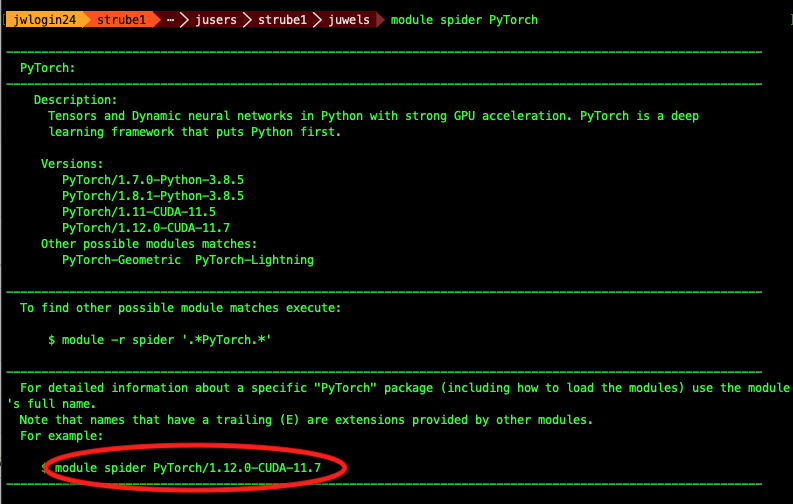

Search for the software itself - it will suggest a version

Example: PyTorch

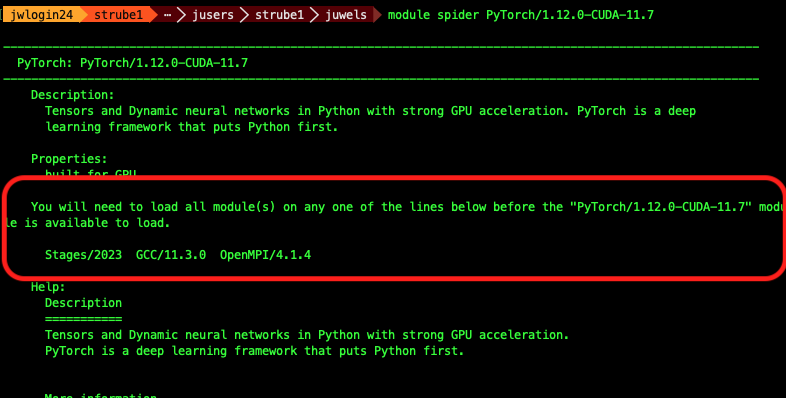

Search with the version - it will suggest the hierarchy

Example: PyTorch

(make sure you are still connected to Juwels BOOSTER)

$ python
-bash: python: command not found

Oh noes! 🙈

Let’s bring Python together with PyTorch!

Example: PyTorch

Copy and paste these lines

# This command fails, as we have no proper python
python
# So, we load the correct modules...
module load Stages/2023
module load GCC OpenMPI Python PyTorch
# And we run a small test: import pytorch and ask its version
python -c "import torch ; print(torch.__version__)"

Should look like this:

$ python
-bash: python: command not found
$ module load Stages/2023
$ module load GCC OpenMPI Python PyTorch
$ python -c "import torch ; print(torch.__version__)"
1.12.0

Python Modules

Some of the python softwares are part of Python itself, or of other softwares. Use “module key”

module key toml
The following modules match your search criteria: "toml"
------------------------------------------------------------------------------------

  Jupyter: Jupyter/2020.2.5-Python-3.8.5, Jupyter/2021.3.1-Python-3.8.5, Jupyter/2021.3.2-Python-3.8.5, Jupyter/2022.3.3, Jupyter/2022.3.4
    Project Jupyter exists to develop open-source software, open-standards, and services for interactive computing across dozens of programming languages.


  PyQuil: PyQuil/3.0.1
    PyQuil is a library for generating and executing Quil programs on the Rigetti Forest platform.

  Python: Python/3.8.5, Python/3.9.6, Python/3.10.4
    Python is a programming language that lets you work more quickly and integrate your systems more effectively.

------------------------------------------------------------------------------------

Jupyter

  • From the Jupyter’s terminal, navigate to your “course” folder and to the name you created earlier.

  • cd $HOME/course/$USER
pwd

  • This is out working directory. We do everything here.

Demo code

  • Make sure you are on the right folder with the pwd command
  • Create a new file
    • Save it with the name matrix.py
  • Paste this into the file:

matrix.py

import torch

matrix1 = torch.randn(3,3)
print("The first matrix is", matrix1)

matrix2 = torch.randn(3,3)
print("The second matrix is", matrix2)

result = torch.matmul(matrix1,matrix2)
print("The result is:\n", result)

How to run it on the login node

# Load the modules we need for this code

module load Stages/2023
module load GCC OpenMPI PyTorch

# Call the program

python matrix.py

But that’s not what we want… 😒

So we send it to the queue!

HOW?🤔

SLURM 🤯

Simple Linux Utility for Resource Management

Slurm submission file

  • Simple text file which describes what we want and how much of it, for how long, and what to do with the results

Slurm submission file example

File juwelsbooster-matrix.sbatch

#!/bin/bash
#SBATCH --account=training2336           # Who pays?
#SBATCH --nodes=1                        # How many compute nodes
#SBATCH --job-name=matrix-multiplication
#SBATCH --ntasks-per-node=1              # How many mpi processes/node
#SBATCH --cpus-per-task=1                # How many cpus per mpi proc
#SBATCH --output=output.%j        # Where to write results
#SBATCH --error=error.%j
#SBATCH --time=00:01:00          # For how long can it run?
#SBATCH --partition=booster         # Machine partition
#SBATCH --reservation=dl4neurosc # For today only

module load Stages/2023
module load GCC OpenMPI PyTorch  # Load the correct modules on the compute node(s)

srun python matrix.py            # srun tells the supercomputer how to run it

Submitting a job: SBATCH

sbatch juwelsbooster-matrix.sbatch

Submitted batch job 412169

Are we there yet?

Are we there yet? 🐴

squeue --me

squeue --me
   JOBID  PARTITION    NAME      USER    ST       TIME  NODES NODELIST(REASON)
   412169 gpus         matrix-m  strube1 CF       0:02      1 jsfc013

ST is status:

  • PD (pending),
  • CF(configuring),
  • R (running),
  • CG (completing)

Reservations

  • Some partitions have reservations, which means that only certain users can use them at certain times.
  • For this course, we have:
  • Juwels Booster: dl4neurosc

Job is wrong, need to cancel

scancel <JOBID>

Check logs

By now you should have output and error log files on your directory. Check them!

# Notice that this number is the job id. It's different for every job
cat output.412169
cat error.412169

Or simply open it on Jupyter!

Extra software, modules and kernels

You want that extra software from pip….

Venv/Kernel template

cd $HOME/course/$USER
git clone https://gitlab.jsc.fz-juelich.de/kesselheim1/sc_venv_template.git

Example: Let’s install some software!

  • Even though we have PyTorch, we don’t have PyTorch Lightning Flash
  • Same for fast.ai, gym and wandb
  • We will install them in a virtual environment

Example: Let’s install some software!

  • Edit the file requirements.txt

  • Add these lines at the end:

  • fastai
lightning-flash[image]
gym
wandb

  • Run on the terminal: sc_venv_template/setup.sh

Example: Activating the virtual environment

  • source sc_venv_template/activate.sh
  • python
  • import fastai
  • fastai.__version__
  • source sc_venv_template/activate.sh
The activation script must be sourced, otherwise the virtual environment will not work.
Setting vars
The following modules were not unloaded:
(Use "module --force purge" to unload all):
1) Stages/2023
The following have been reloaded with a version change:
1) HDF5/1.12.2-serial => HDF5/1.12.2
python
Python 3.10.4 (main, Oct  4 2022, 08:48:14) [GCC 11.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import fastai
>>> fastai.__version__
'2.7.12'
>>> exit()

Let’s train a 🐈 classifier!

  • This is a minimal demo, to show some quirks of the supercomputer
  • Save it as cats.py
  • from fastai.vision.all import *
from fastai.callback.tensorboard import *
#
print("Downloading dataset...")
path = untar_data(URLs.PETS)/'images'
print("Finished downloading dataset")
#
def is_cat(x): return x[0].isupper()
#
# Create the dataloaders and resize the images
dls = ImageDataLoaders.from_name_func(
    path, get_image_files(path), valid_pct=0.2, seed=42,
    label_func=is_cat, item_tfms=Resize(224))
print("On the login node, this will download resnet34")
learn = vision_learner(dls, resnet34, metrics=accuracy)
#
# Trains the model for 3 epochs with this dataset
learn.unfreeze()
learn.fit_one_cycle(3, cbs=TensorBoardCallback('runs', trace_model=True, projector=True))

Submission file for the classifier

Save this as fastai.sbatch

#!/bin/bash
#SBATCH --account=training2336
#SBATCH --mail-user=MYUSER@fz-juelich.de
#SBATCH --mail-type=ALL
#SBATCH --nodes=1
#SBATCH --job-name=matrix-multiplication
#SBATCH --ntasks-per-node=1
#SBATCH --cpus-per-task=1
#SBATCH --output=output.%j
#SBATCH --error=error.%j
#SBATCH --time=00:10:00
#SBATCH --partition=booster
#SBATCH --reservation=dl4neurosc # For today only

cd $HOME/course/$USER
source sc_venv_template/activate.sh # Now we finally use the fastai module

srun python cats.py

Submit it

sbatch fastai.sbatch

Submission time

  • Check error and output logs, check queue

Probably not much happening…

  • $ cat output.7948496
The activation script must be sourced, otherwise the virtual environment will not work.
Setting vars
Downloading dataset...
  • $ cat err.7948496
The following modules were not unloaded:
(Use "module --force purge" to unload all):

1) Stages/2023

💥

What happened?

  • It might be that it’s not enough time for the job to give up
  • Check the error.${JOBID} file
  • If you run it longer, you will get the actual error
  • Long error message which ends with
  •   File "/p/software/juwelsbooster/stages/2023/software/Python/3.10.4-GCCcore-11.3.0/lib/python3.10/urllib/request.py", line 1391, in https_open
    return self.do_open(http.client.HTTPSConnection, req,
  File "/p/software/juwelsbooster/stages/2023/software/Python/3.10.4-GCCcore-11.3.0/lib/python3.10/urllib/request.py", line 1351, in do_open
    raise URLError(err)
urllib.error.URLError: <urlopen error [Errno 111] Connection refused>
srun: error: jsfc013: task 0: Exited with exit code 1

🤔…

What is it doing?

  • This downloads the dataset:
  • path = untar_data(URLs.PETS)/'images'
  • And this one downloads the pre-trained weights:
  • learn = vision_learner(dls, resnet34, metrics=error_rate)

Remember, remember

Remember, remember

Compute nodes have no internet connection

  • But the login nodes do!
  • So we download our dataset before…
    • On the login nodes!

On the login node:

  • Comment out the line which does AI training:
  • # learn.fit_one_cycle(3, cbs=TensorBoardCallback('runs', trace_model=True))
  • Call our code on the login node!
  • source sc_venv_template/activate.sh # So that we have fast.ai library
python cats.py

Run the downloader on the login node

$ source sc_venv_template/activate.sh
$ python fastai-demo.py
Downloading dataset...
 |████████-------------------------------| 23.50% [190750720/811706944 00:08<00:26]
 Downloading: "https://download.pytorch.org/models/resnet34-b627a593.pth" to /p/project/ccstao/cstao05/.cache/torch/hub/checkpoints/resnet34-b627a593.pth
100%|█████████████████████████████████████| 83.3M/83.3M [00:00<00:00, 266MB/s]

Run it again on the compute nodes!

  • Un-comment back the line that does training:
  • learn.fit_one_cycle(3, cbs=TensorBoardCallback('runs', trace_model=True))
  • Submit the job!
  • sbatch fastai.sbatch

Masoquistically waiting for the job to run?

watch squeue --me

(To exit, type CTRL-C)

Check output files

  • You can see them within Jupyter
  • The activation script must be sourced, otherwise the virtual environment will not work.
Setting vars
Downloading dataset...
Finished downloading dataset
epoch     train_loss  valid_loss  error_rate  time
Epoch 1/1 : |-----------------------------------| 0.00% [0/92 00:00<?]
Epoch 1/1 : |-----------------------------------| 2.17% [2/92 00:14<10:35 1.7452]
Epoch 1/1 : |█----------------------------------| 3.26% [3/92 00:14<07:01 1.6413]
Epoch 1/1 : |██---------------------------------| 5.43% [5/92 00:15<04:36 1.6057]
...
....
Epoch 1/1 :
epoch     train_loss  valid_loss  error_rate  time
0         0.049855    0.021369    0.007442    00:42
  • 🎉
  • 🥳

Tools for results analysis

  • We already ran the code and have results
  • To analyze them, there’s a neat tool called Tensorboard
  • And we already have the code for it on our example!
  • learn.fit_one_cycle(3, cbs=TensorBoardCallback('runs', trace_model=True))

Jupyter and TensorBoard

  • On Jupyter, make sure you are on the $PROJECT/YOUR USER folder
  • Right click on the files list and choose New Notebook

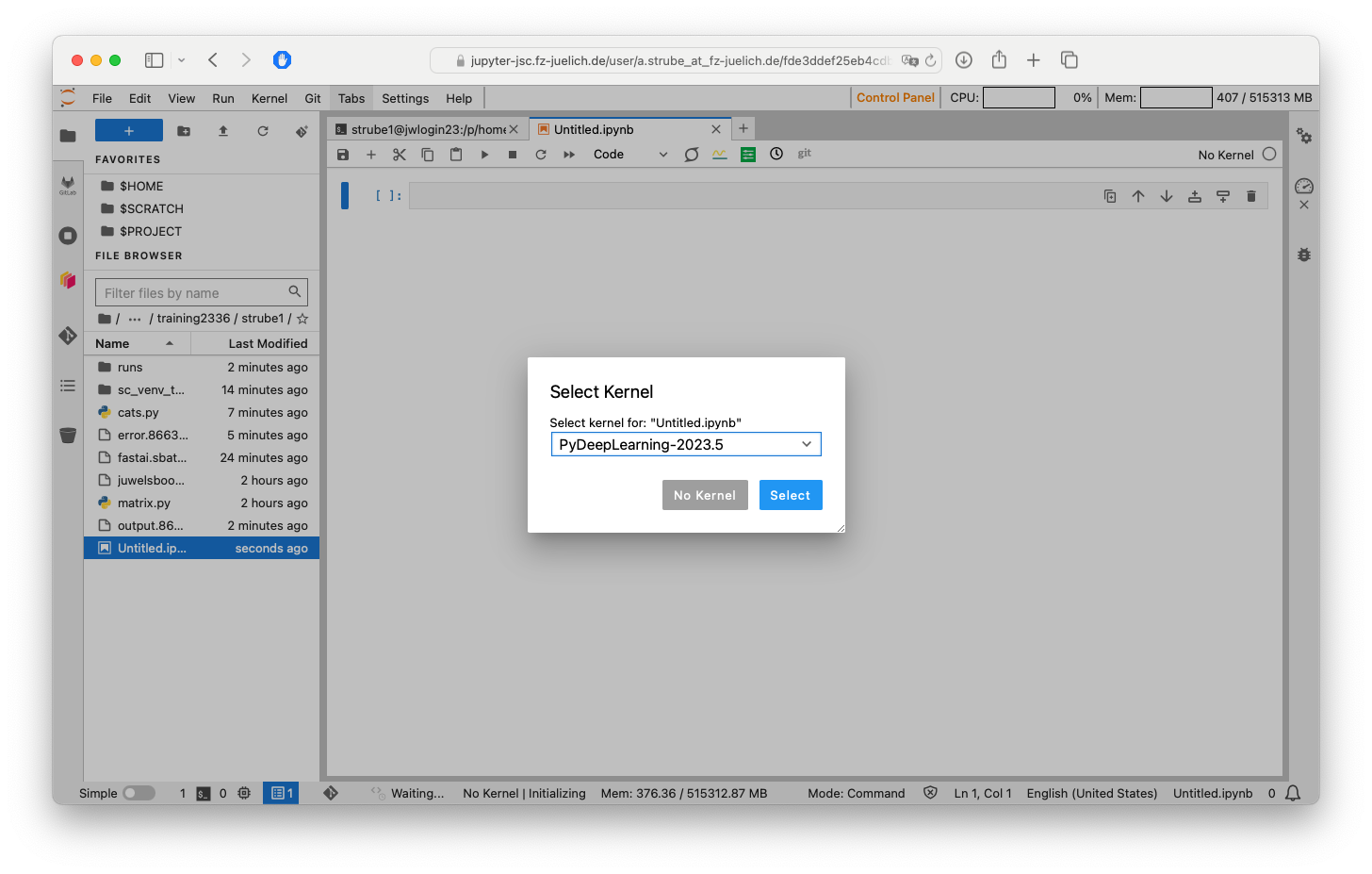

  • It will ask you for a kernel - Choose PyDeepLearning 2023.05

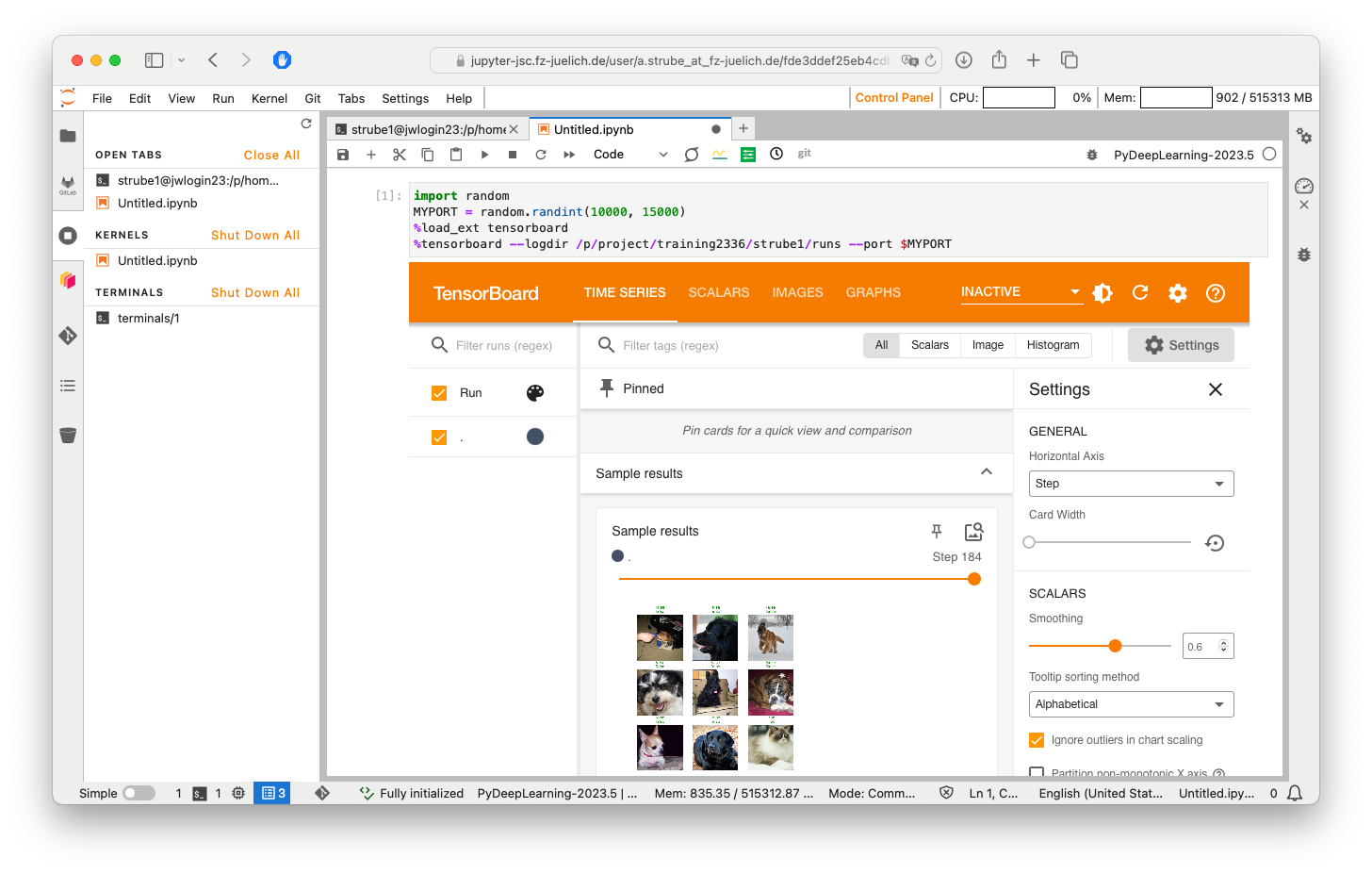

TensorBoard:

  • On Jupyter’s notebook:
  • import random
MYPORT = random.randint(10000, 15000)
%load_ext tensorboard
%tensorboard --logdir /p/project/training2336/strube1/runs --port $MYPORT

Tensorboard on Juwels Booster

Part 1 recap

As of now, I expect you managed to:

  • Stay awake for the most part of this morning 😴
  • A working jupyter connection to the supercomputers 🖥️
  • Can edit and transfer files via Jupyter 📝
  • Submit jobs and read results 📫
  • Access tensorboard on the login nodes 🧙‍♀️
  • Is ready to make great code! 💪

ANY QUESTIONS??

Feedback is more than welcome!
